Displaying Updates

Datapane automatically handles taking the results from your compute function and updating the user's view of the app. By default, the output of your functions will be inserted directly below where the compute block, i.e. a Form, in your app.

This works for most common cases, however you may want to specify this behavior - for instance you may want to add the results to the user's existing Group block, add a new Page, or even replace the Form itself. To accomplish this, Datapane compute blocks accept two arguments, target= and swap= that are used to specify how to update the View of your user's app with the results.

target determines which block to target to update with the new blocks
swap indicates how the targetted block will be updated with the new blocks

Block Targetting¶

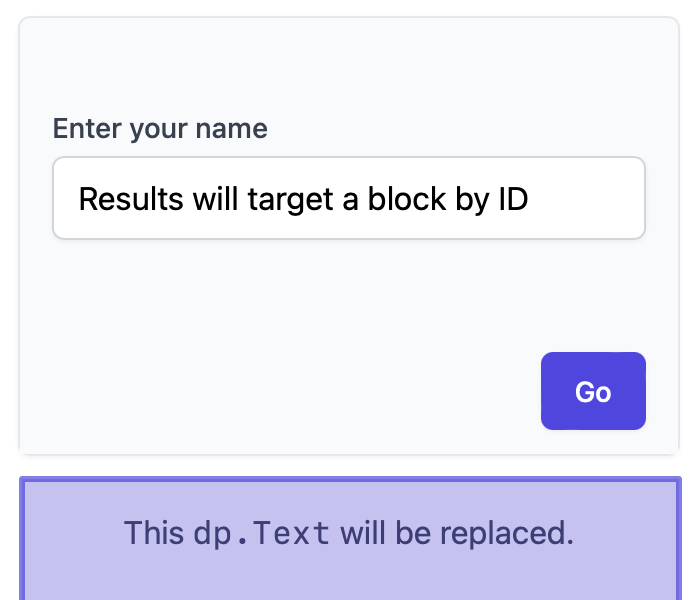

All blocks have an optional name property which is used for referencing and targetting. In the example below, the same value is used both as the block name and also assigned to the compute block's target parameter. This indicates to Datapane that the targetted block should be updated with the function result.

import datapane as dp

def f(name: str):
    return dp.Text(f"Hello, {name.title()}!")

view = dp.View(
    dp.Form(on_submit=f,
            controls=dp.Controls(name=dp.TextBox()), target="replace_me"),
    dp.Text("This will be replaced", name='replace_me')
)

dp.serve_app(view)

Tip

the dp.Empty block is provided as an empty placeholder for use as a target - it is not displayed on the screen and always requires a name. You can think of this like a HTML <div/>.

Note

the target parameter can also be given a block object directly to use as the target

Target modes¶

Instead of replacing other blocks, Datapane also provides dp.TargetMode as a helper to insert blocks around your app, or to replace the form itself. When using dp.TargetMode you don't need to create empty blocks or think about block names, instead Datapane will automatically configure things to update as needed.

dp.TargetMode is used as follows:

import datapane as dp

def f(name: str):
    return dp.Text(f"Hello, {name.title()}!")

view = dp.View(
    dp.Form(on_submit=f, controls=dp.Controls(name=dp.TextBox()), target=dp.TargetMode.BELOW),
)

dp.serve_app(view)

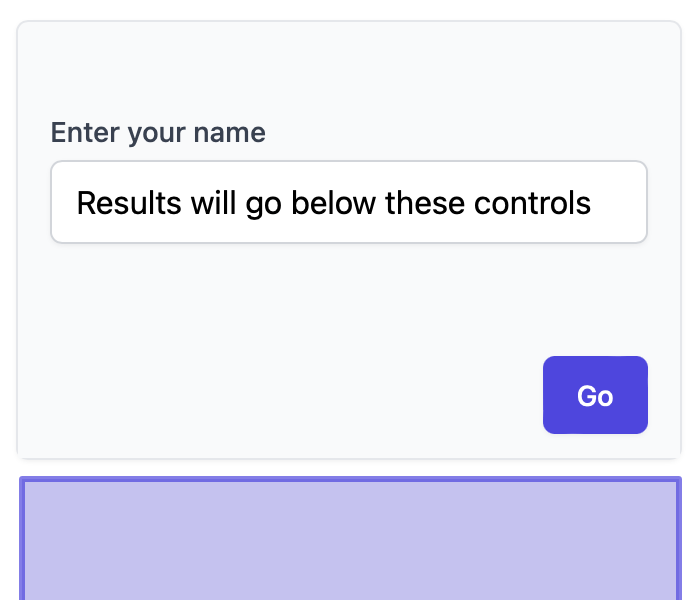

Insert below (default)¶

Insert the result blocks directly below the form using dp.TargetMode.BELOW.

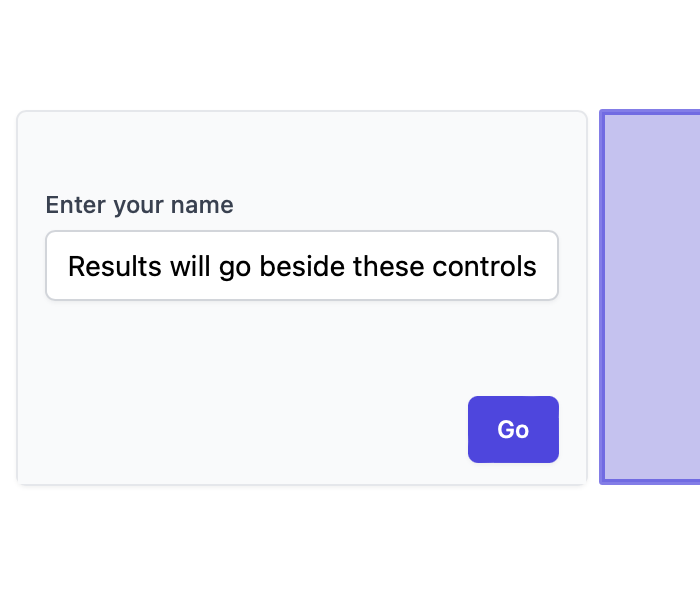

Insert to the side¶

Insert the result blocks to right side of the form using dp.TargetMode.SIDE

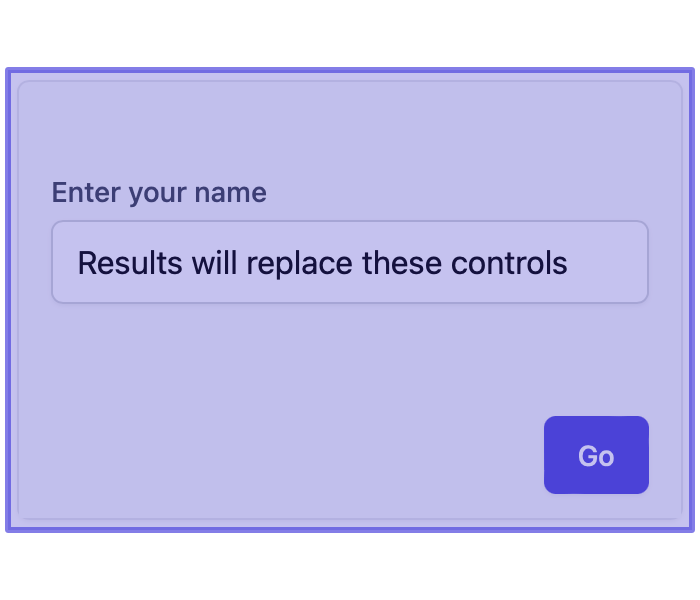

Replace self¶

Replace the form itself using dp.TargetMode.SELF. This helpful for forms which should only be called a single time.

Block Swapping¶

In addition to choosing where to insert your block, Datapane also provides helpers around how to insert a block. This is more of an advanced feature only available on the dp.Compute block that is primarily useful when you are inserting blocks into a layout block -- for instance, if you had a form which prepended/appended a result to a list upon each run.

This behavior is configured using the dp.Swap enum which is passed into a Compute block via the swap parameter. In the example below, every time the form is submitted, the results are prepended to the front of the previous data inside the 2-column dp.Group block.

import datapane as dp

def f(name: str):
    return dp.Text(f"Hello, {name.title()}!")

view = dp.View(
    dp.Compute(function=f, controls=dp.Controls(name=dp.TextBox()), target='my_grid', swap=dp.Swap.PREPEND),
    dp.Group(columns=2, name="my_grid")
)

dp.serve_app(view)

Replace (default)¶

By default, Datapane will replace the target completely using dp.Swap.REPLACE.

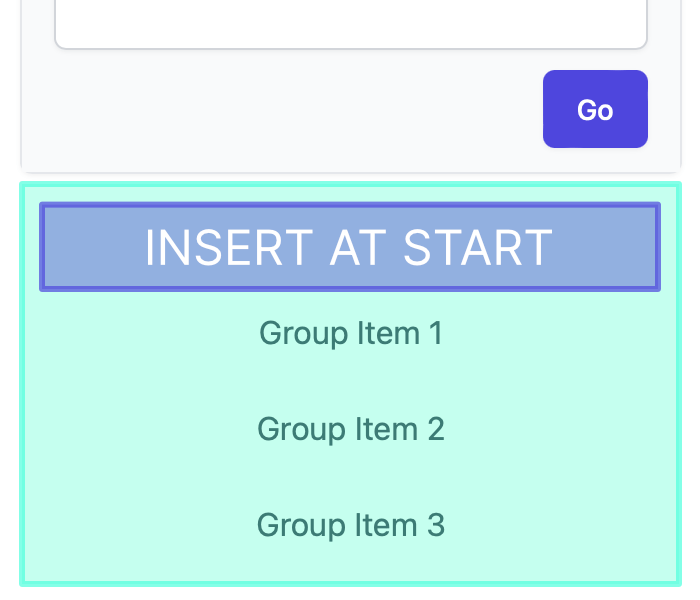

Prepend¶

dp.Swap.PREPEND allows you to insert a block as the first item in a layout block.

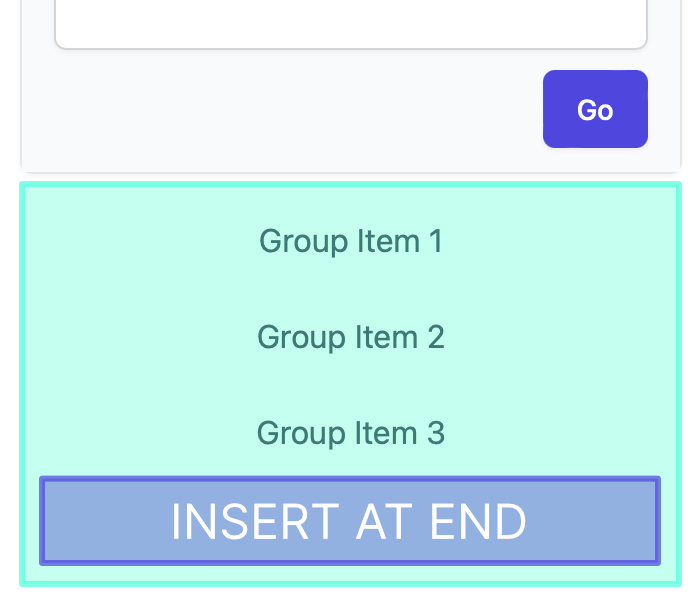

Append¶

dp.Swap.APPEND allows you to insert a block as the last item in a layout block.

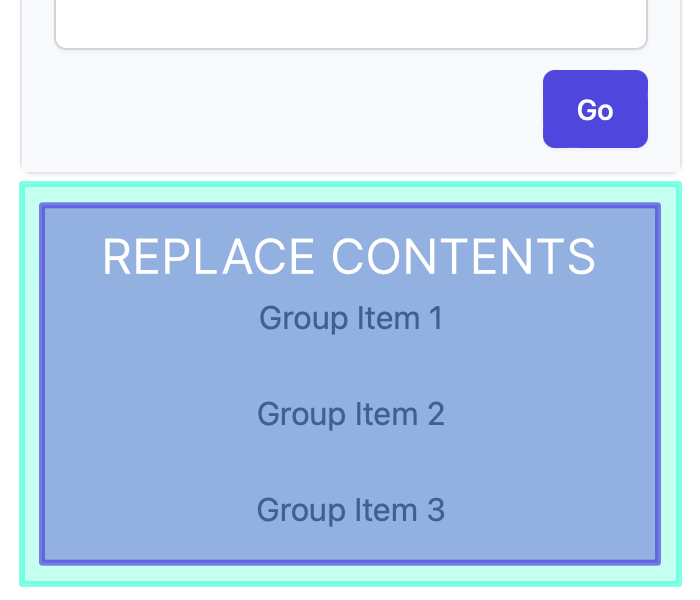

Inner¶

dp.Swap.Inner allows you to insert a block inside a layout block without replacing it. For instance, if you had a Select and wanted to replace its contents, but didn't want to delete the Select itself.
